MAXIM SILENCER APPLICATIONS |
|

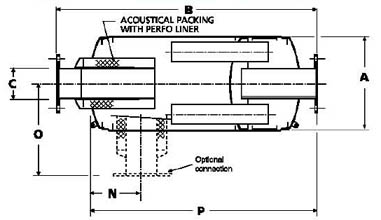

Size |
A |
B |
C |
N |
O |
P |
Est. Wt. |
|
Min. |
Max. |
|
4" |
14 |
48 |
4 |
5 1/2 |
22 |
10 |
45 |
110 |
|
5" |
16 |
55 |
5 |
6 1/2 |
25 |
11 |
52 1/4 |
120 |
|
6" |
18 |
63 |
6 |
7 |
29 1/2 |
12 |
60 1/4 |
170 |
|
8" |
22 |
76 |
8 |
8 1/2 |
36 1/2 |
14 |
73 1/2 |
285 |
|
10" |
26 |
91 |
10 |
10 1/2 |
43 |
16 1/2 |
88 |
460 |
|
12" |
30 |
109 |
12 |
12 |
53 |
18 1/2 |
106 1/4 |
745 |
|
14" |
36 |
102 |
14 |
14 |
48 |
21 1/2 |
99 1/4 |
965 |
|
16" |
40 |
119 |
16 |
17 |
56 |
23 1/2 |
116 1/2 |
1340 |
|
18" |
45 |
127 |
18 |
19 |
60 |
26 1/2 |
124 |
1850 |
|
20" |
50 |
144 |
20 |
21 |
69 |
29 |
141 1/4 |
2175 |
|
22" |
54 |
161 |
22 |
22 |
78 |
31 |
158 1/4 |
2650 |
|
24" |
60 |
165 |
24 |
24 |
79 |
34 |
162 1/4 |
3400 |
|
26" |
64 |
183 |
26 |
26 |
89 |
36 |
180 1/2 |
3850 |
|
28" |
68 |
200 |
28 |
27 |
98 |
38 |
197 3/4 |
4840 |
|
30" |
72 |
216 |
30 |
29 |
107 |
40 |
213 3/4 |
5150 |
|
Note: Dimensions are in inches,
weights are in pounds. |
|
Typical Applications: |
Features: |
Optional Accessories: |
• Rotary positive blower
discharge–10” size & below
• Wet exhaust systems (mix
temperature not exceed 200 oF
at silencer) |
• Superior acoustical design
& long service life
• Double wall, all welded
construction
• Prime coated exterior finish
• Installed in any position |
• Stainless Steel or Monel
construction
• Flanged connections
• Standard pipe size necks |
|
Sample
Specification: |
| The silencer shall be a Maxim Model
MB21 with heavy wall, all welded construction, and
protected by a single coat of shop primer.
Acoustical packing shall be polyester wool or other
material suitable for the application, protected by
perforated metal with wire screen/cloth. The
silencer shall be complete with the following
accessories. |
|
