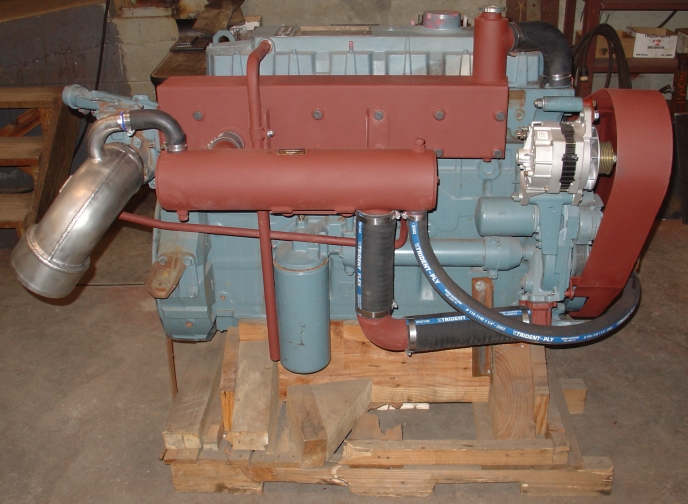

Series 40 Detroit/ Navistar International 530E Full heat exchanger kit
This is a great kit, smooth package. Very proud of everyone involved in its creation.
If interested, please give Ken McMahan a call at 1-941-504-5978.
I hope to have a small Yanmar engine in house soon, if so-I'll certainly upload the pics

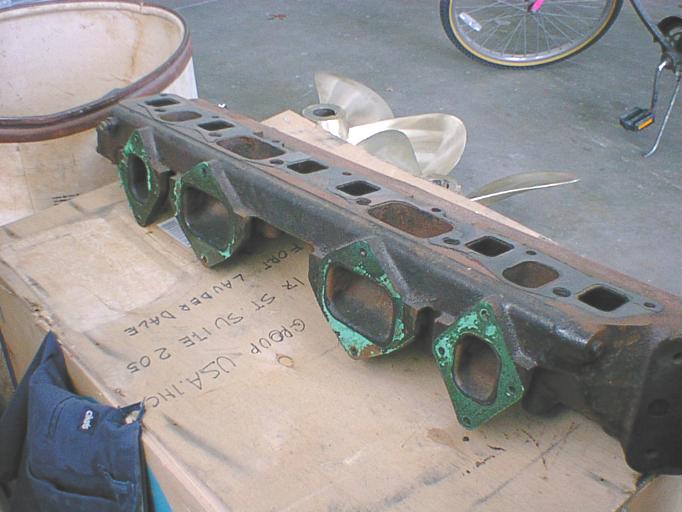

A customer could not find a souce for this manifold, so he shipped it in and we duplicated it.
Old Ford Lehman Water Cooled Manifold New Ford Lehman Water Cooled Manifold
I hope to have a Perking 1004 engine in house shortly and I have a range 4 6.354 (6.354.4) in route to prototype a modular marine kit. Omitting the need for the $9000.00 manicooler!!!

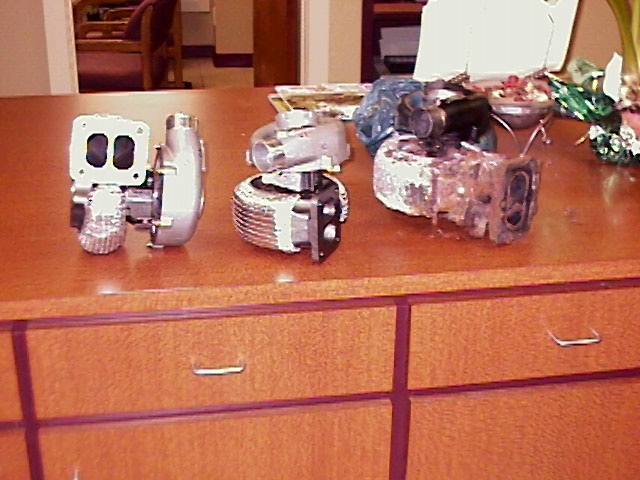

Hino Turbo Chargers- The customer shipped in the original units for identification. Sourced out relatively cheap replacements all the way in Japan, small world....
Superior 8G825 Water Cooled Manifold built using an old, failed unit for a pattern.

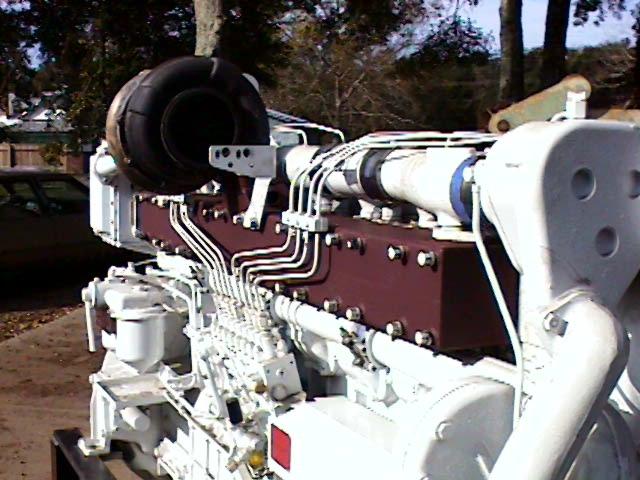

This is the Guascor SF240TA, a hell of an engine, with our one piece water cooled manifold.
If interested please contact Warren with Reagan Equipment at 1-800-237-3160
This is the John Deere 6081 Powertech Engine with our water cooled manifold.
If interested please contact Dale with Reagan Equipment at 1-800-237-3160

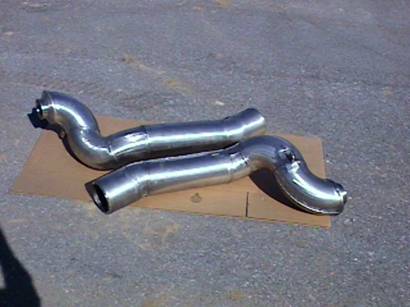

Custom Water Jacketed Risers built for Klosterman Marine 1-251-602-6765
Stainless Steel 316L exterior and Inconel 625 interior-built to last

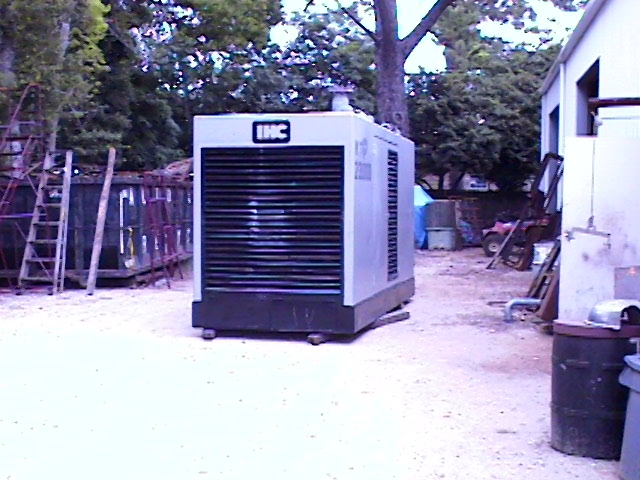

This is a Volvo 1630 that Grant Prideco sent in to have the manifold redesigned to meet EPA regulations
An individual sent in a dry manifold and some outstanding pics of the engine so that we could build a water cooled manifold for his Kubota V2203E.
This is the redesigned interior for a Guascor center section. The turbo flange was extended one inch to allow for more clearance on the engine.

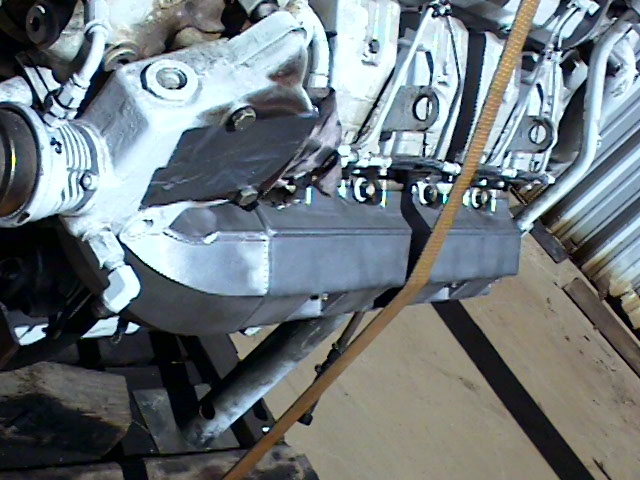

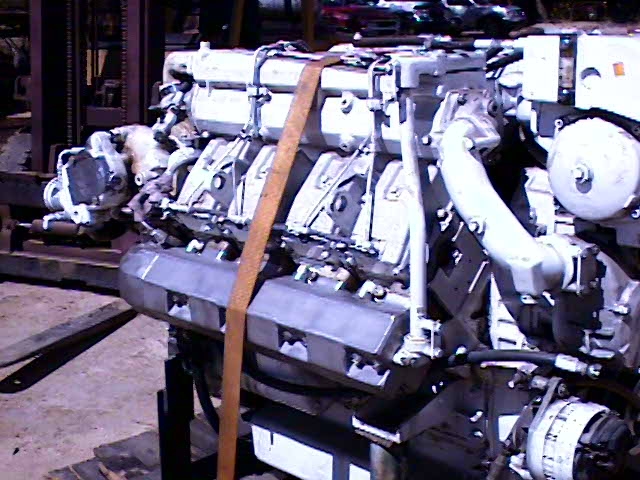

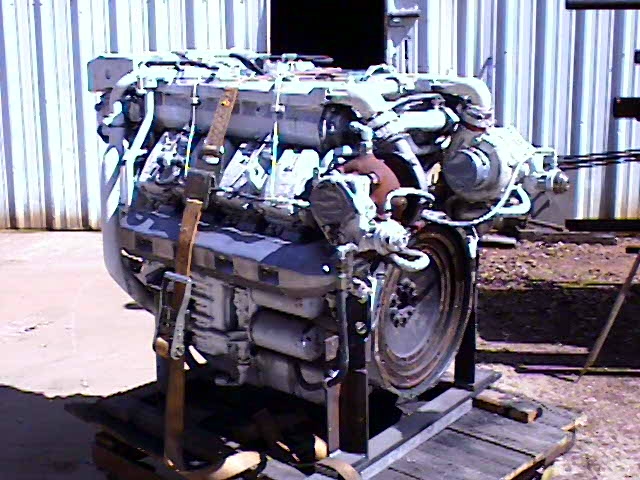

FDGM needed a Stainless water cooled manifold to replace the existing on the IF1308 Isotta Fraschini Engine.

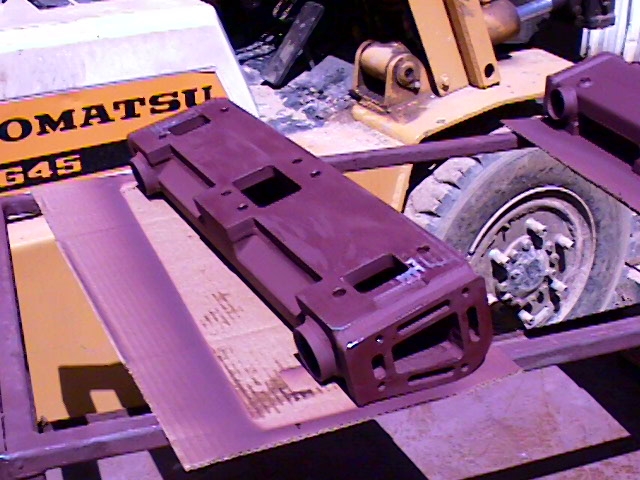

A Cummins distributor required this Onan V549 to be duplicated and producable, Our model 366.

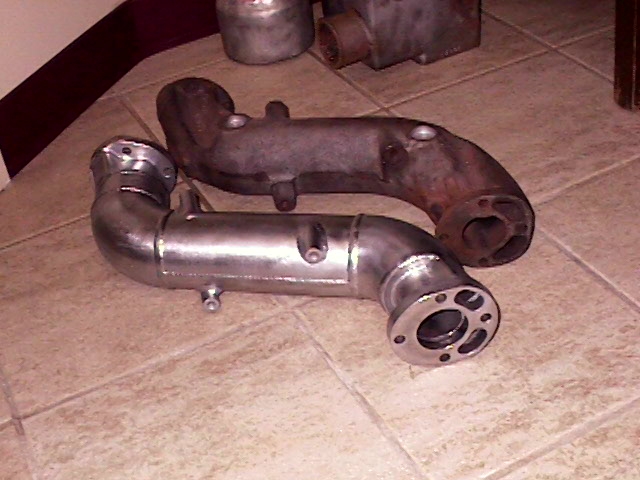

The Perkins 510 Stainless Steel Water Cooled Manifold and Riser, our models 565 and 578.
Our manifold has its centerline pushed away from the engine approximately one inch.

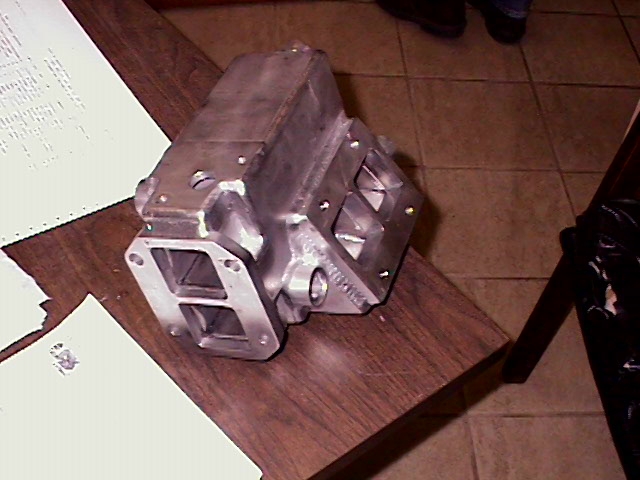

This is a 316L stainless steel Perkins 6.354.4 water cooled turbo adapter. Our Model 579.

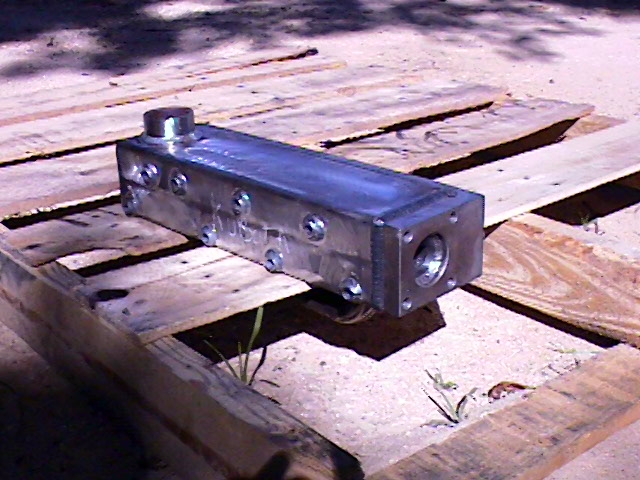

A customer sent in his dry Kubota V2203E manifold and some rather good pictures of the engine and seating surface itself.
We designed and built the water cooled manifold below.
Employees, like John pictured below, make it possible to provide you with quality, ingenuity and precision day in and day out.
They are relentless.
These may look like the regular Caterpillar D399 water cooled manifolds, but they are much more than that....
The manifolds pictured have a 316L stainless steel interior for the exhaust side. The manifolds were special ordered to withstand specific needs of our customer.
Highly corrosive and volatile exhaust products limited the original Caterpillar manifolds operability to a short life of 2-6 months.
Our customer installed our manifolds approximately three years ago and they are still up and running strong.

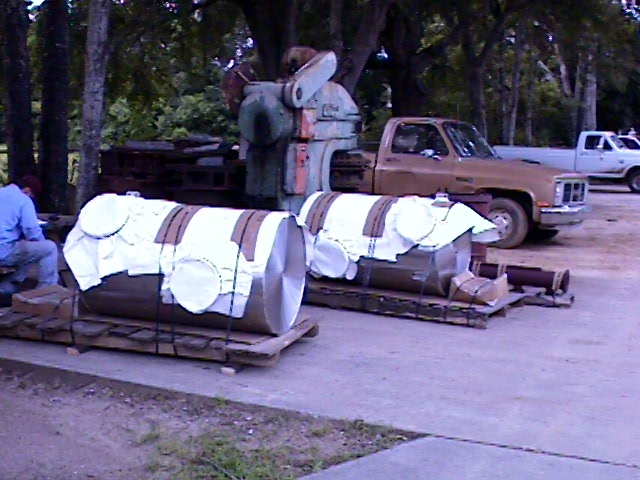

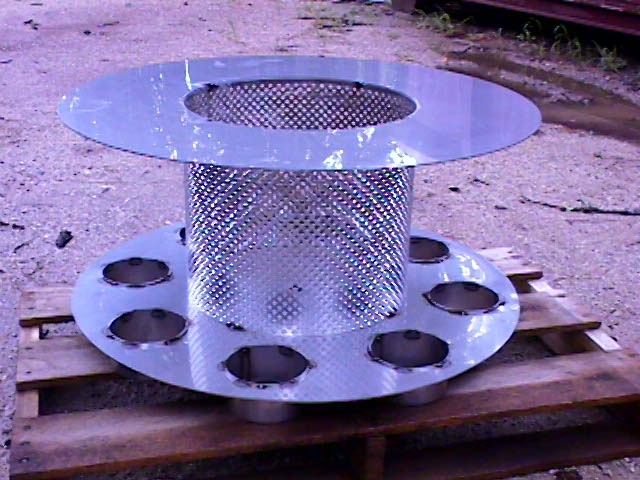

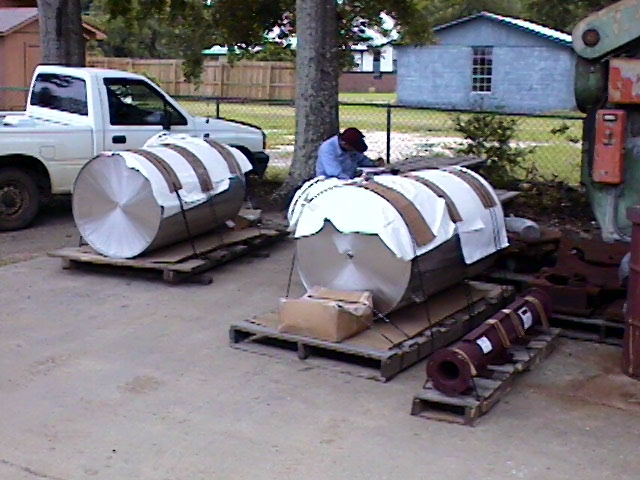

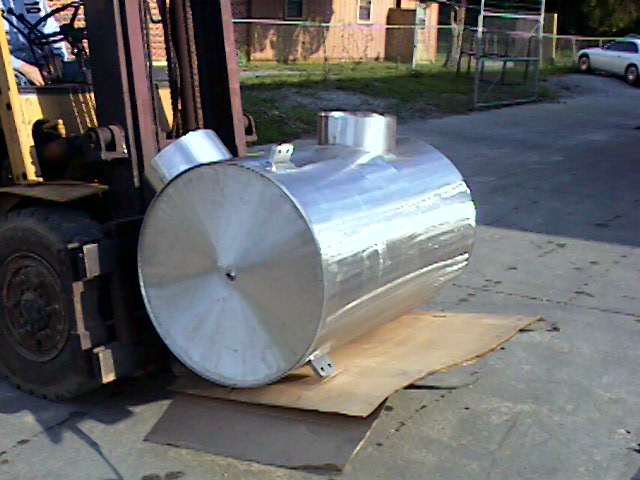

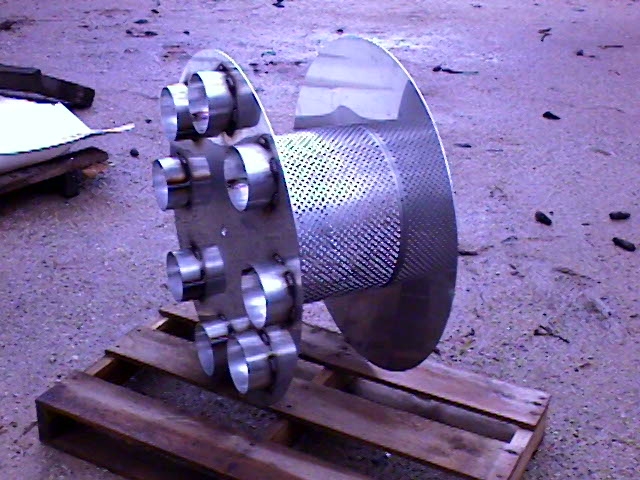

The US Navy required some rather large sound attenuation. The first two 316L stainless steel mufflers are shown.

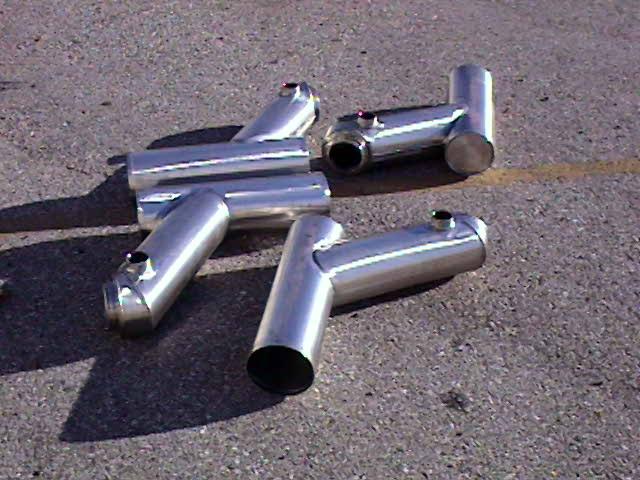

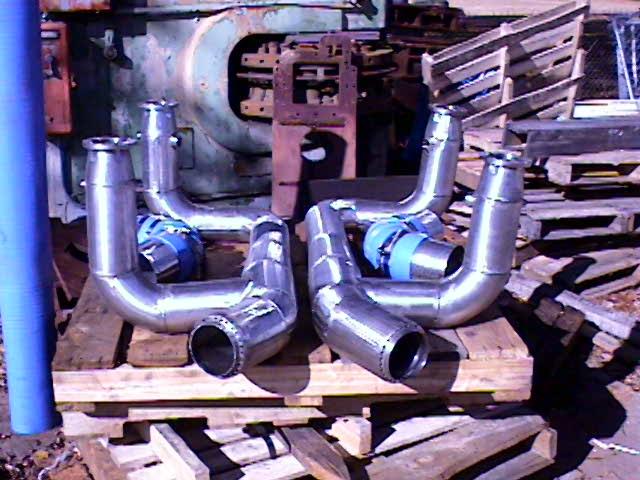

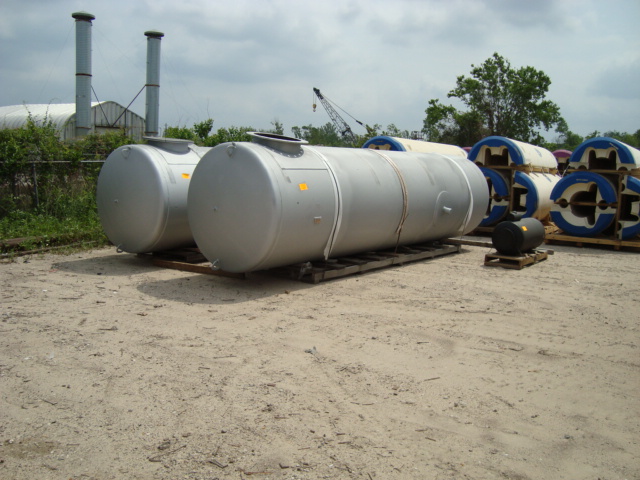

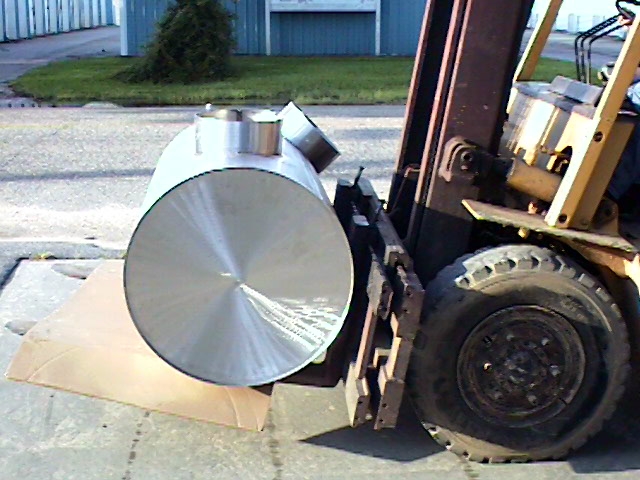

Mufflers-here are a couple of big boys built for a Power Generation Station.

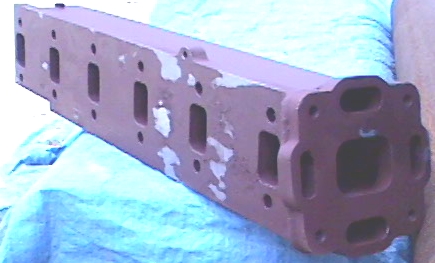

H&S Marine Services (1-979-849-0191) brought us a new style Cummins 6BT 5.9L Dodge Truck Engine (the new 24 valve) in need of a water cooled manifold. The biggest difference between the Old (<1999) and the New Style engine is that the new style has round exhaust ports where the old style has rectangular ports. We also extended the turbo mounting flange to add some much needed clearance between the block and the turbo.H&S Marine Services has propriety over this design so all inquiries should be directed to them.

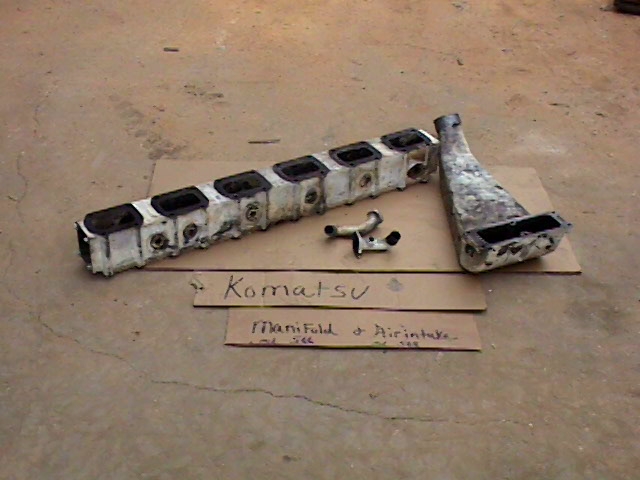

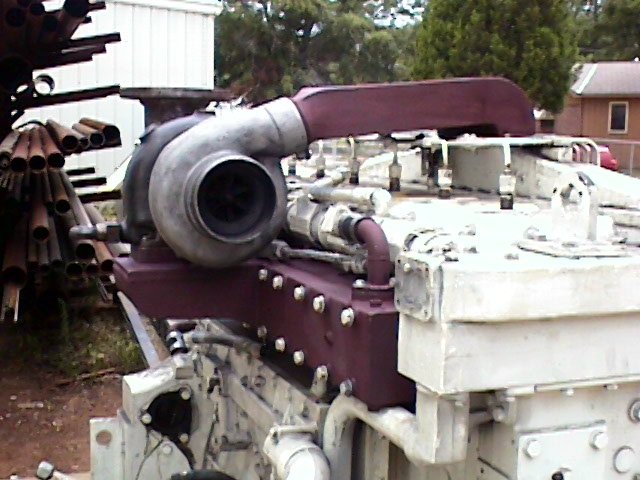

Komatsu SA6170-Turbo originally bolted to the side of the OEM water cooled manifold. During short life cycle, vibration and the turbo's own weight would shear the turbo mounting bolts. Cenac Towing contacted us to see what we could do.
Solution-Given the engine, we redesigned the manifold. we rotated the turbo so that the weight was supported by hidden interior gussets, paying close attention to the interior flow patterns. The flange that the turbo mounts to was also changed to handle more allowable stress. Harmonics and Moments of Inertia were subsequently changed to prolong manifold life. Cooling water headloss was actually decreased and flow was improved by the design. We doubled the amount of vents and drains to ensure proper dearation during initial start up. The air intake also had to be modified to account for the turbo shift. The manifold has been in the field some time now with no problems. If you would like something redesigned, please contact Mark Coulson at 1-251-928-1234 or email@example.com or firstname.lastname@example.org

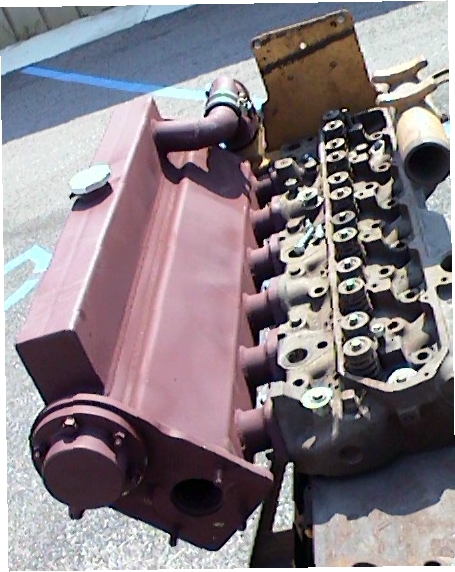

John Deere 6068T Heat Exchanger Kit- The water cooled manifold, expansion tank, and heat exchanger have been incorporated. The tube bundle is removable for inspection and routine maintenance. We can design an affordable kit for almost any engine. We will need the engine and all engine specifications.
Perkins 6.354 Stainless Steel Manifold. There are several different styles of 6.354. Please supply part numbers when inquiring. If you are looking for the range four manicooler we are glad to say that we may be able to help.. No one that we know manufactures the 6.354.4 yet but we do have the multicooler. Please visit our Bowman section for more details. The OEM manicooler will set you back $9 ,000 to $10,000, OUCH!!! We have an engine in route so that I can design a replacement kit to eliminate the need for the hunk of junk that for some reason Perkins decided to stick on this good engine.

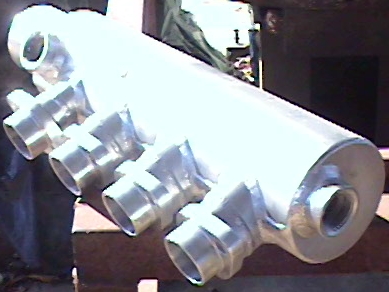

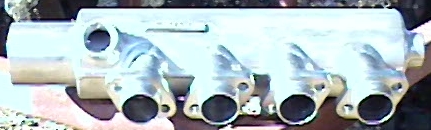

We designed a stainless steel water cooled manifold for a ski-boat racing application. The first photo shows the manifold without the exhaust flanges connected, the second the flanges are present and the manifold is ready for shipment, the third is just a different view of the second.
Mack E-9 Intercooler. The original intercooler was not sufficient, creating to much crank case pressure and too high of a pressure drop. Fairfield Industries contacted us to redesign this unit. This part was redesign and dyno'd, the results were more than satisfactory. The crank case pressure went down, the pressure drop went from 10# to 3# and exhaust temperature went down without effecting BHP. The only downside with this design is that it is cumbersome and quite heavy (approx. 200#). If you are interested in this intercooler or the water cooled manifolds and collector riser for the Mack E-9, please contact Fairfield Industries at 1-281-275-7607.
We custom build all of our own flanges from 316L Stainless Steel Spun Cast. If all you need is the flange, planning to build the rest yourself, please give us a call with the dimensions, and we will quote you the price.

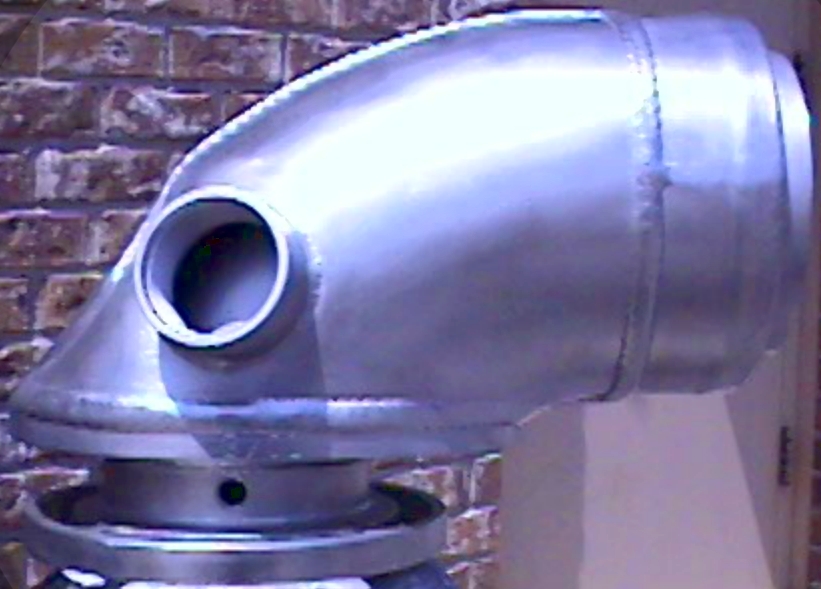

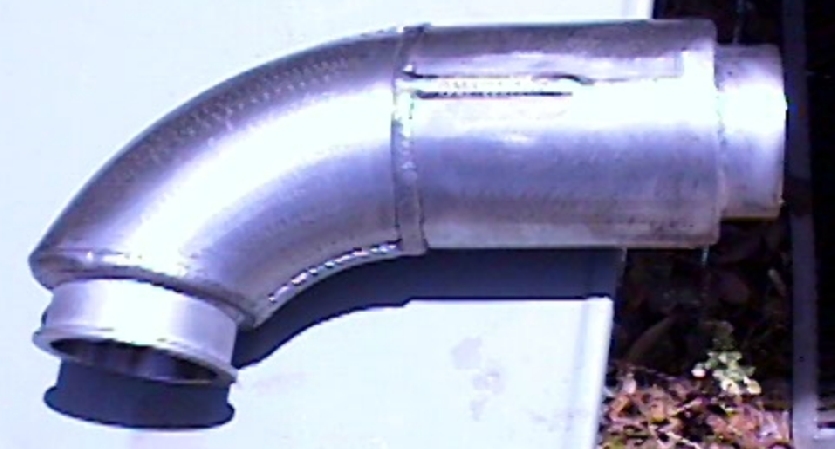

Chet Ruminski Marine's 6BT wet ell. Interior 625 Inconel, Exterior 316L SS. Spacing was a real issue. Alot of Cummins use the slotted flange to get away from the marmon (v-groove) clamp and still maintain some rotating capability.
Perkins 6.354 Dry Ells
SS 316L Sch 40 Pipe with spun cast marmon clamp flanges

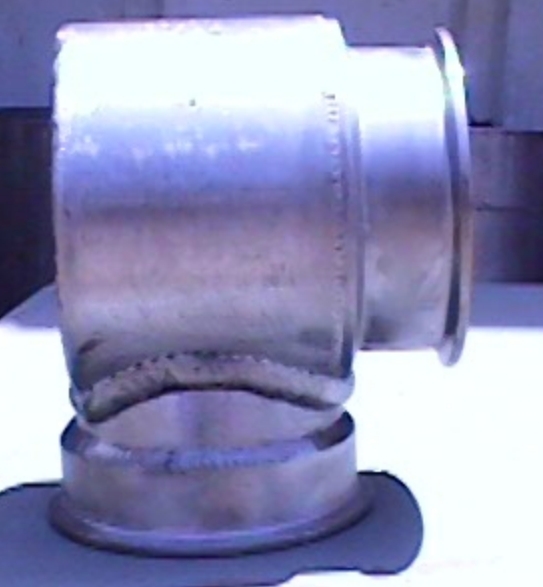

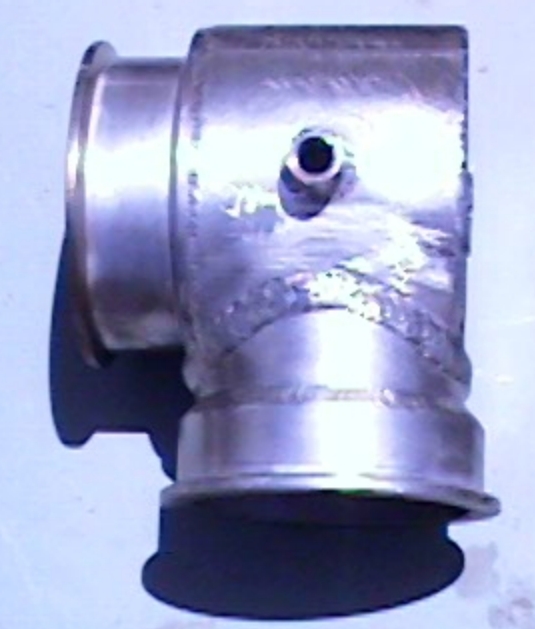

Perkins 6.354 Wet Ells
SS 316L exterior water jacket, Inconel 625 interior exhaust runner with spun cast marmon clamp flanges

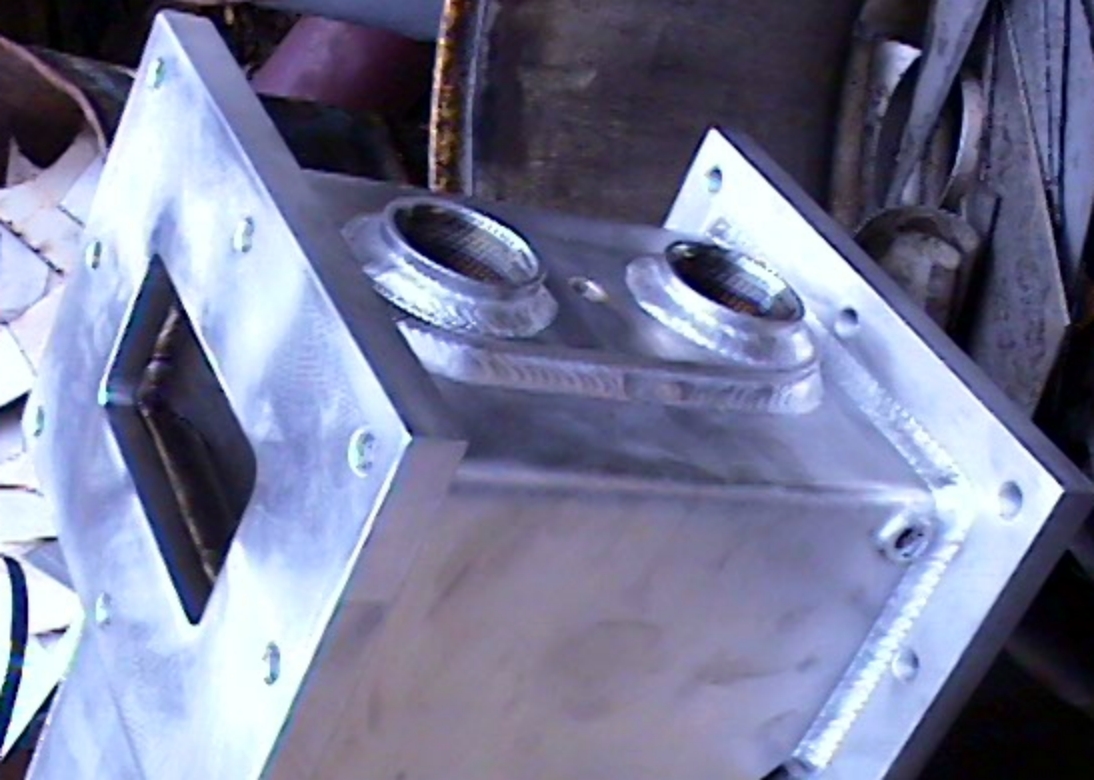

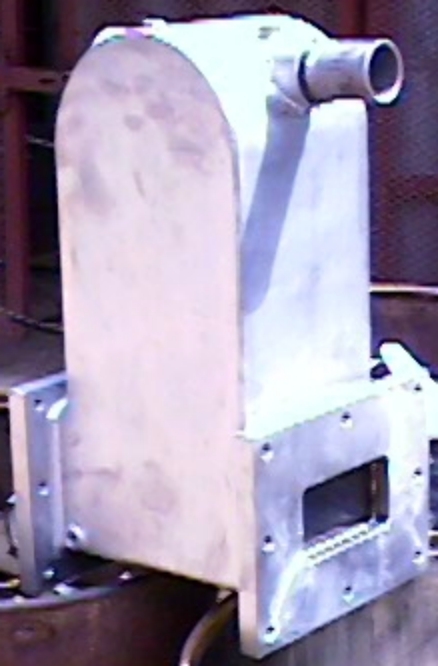

Chris Craft fresh water cooled riser for 8V53 Detroit. The original cast Aluminum riser was completely deteriorated around the exhaust outlet flange. We changed material to 316L SS and increased the material thickness.

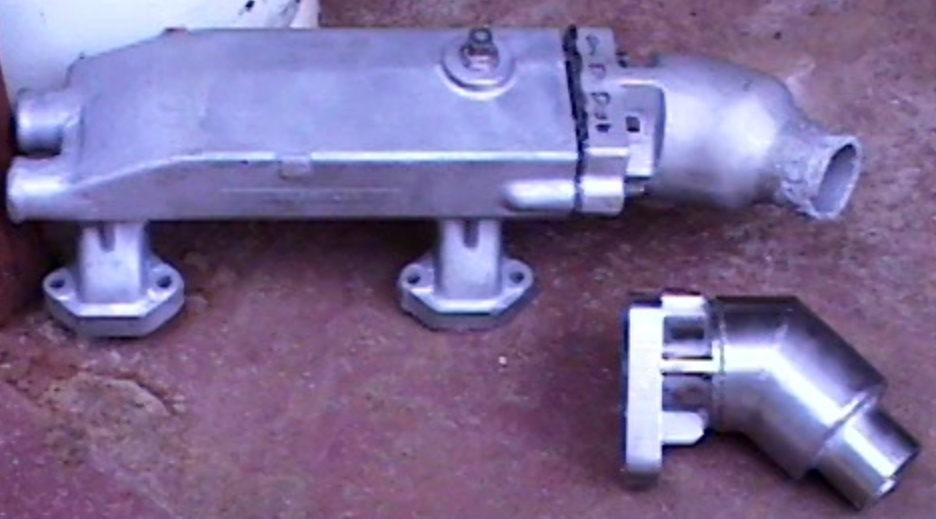

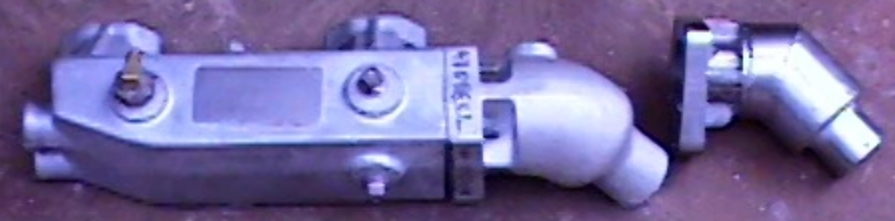

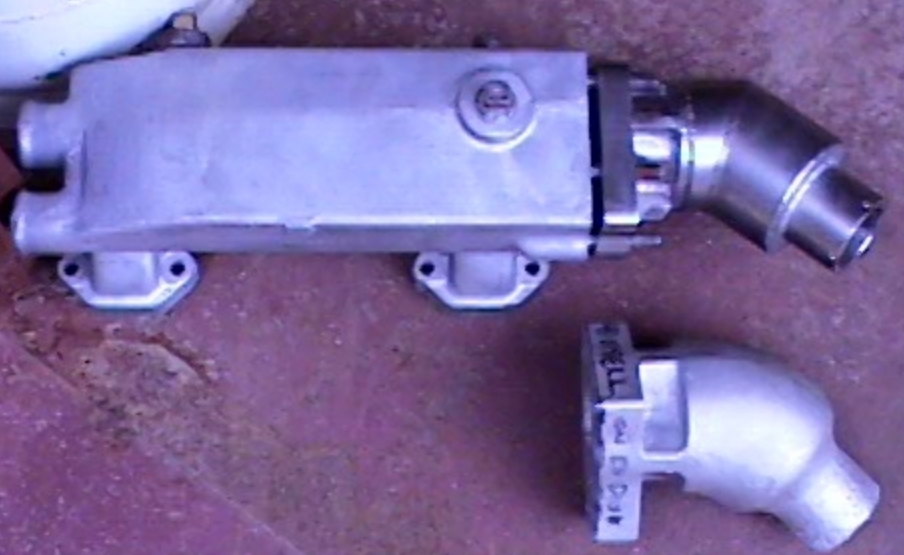

Perkins 4.108 Wet Ell. I do not have the OEM# for this ell yet. As soon as I do I will include it in our Catalog.

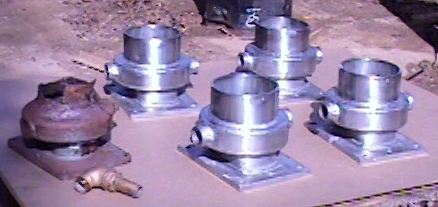

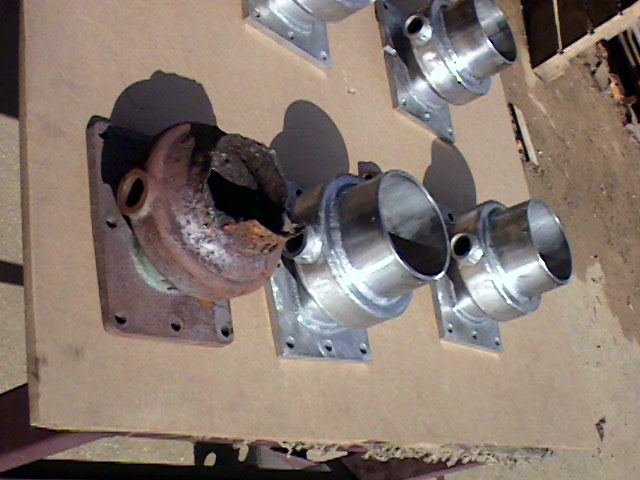

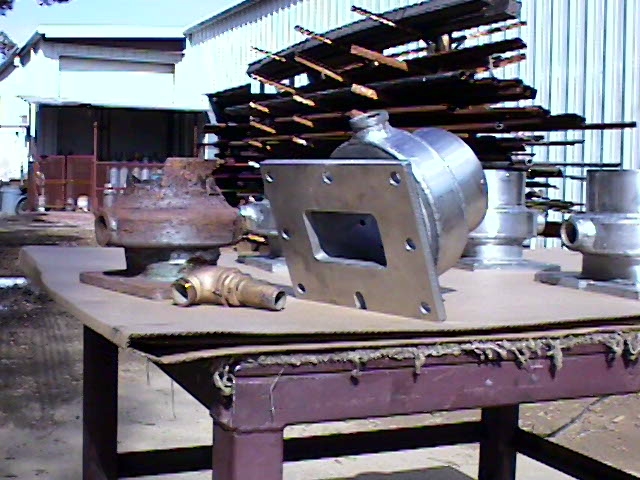

Chris Craft Spray Cans. The customer brought in the original which was in pretty good condition.
We built a fixture and duplicated the part using heavy wall Stainless Steel 316L.
