MUL Model

MAXIM SILENCER APPLICATIONS

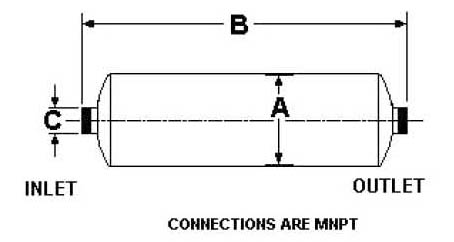

Size A B C Est. Wt.
1" 4 5/8 14 1/2 1 6
1 1/2" 5 3/4 28 1 1/2 14
2" 7 34 1/4 3 22
2 1/2" 8 1/2 42 2 1/2 34
3" 10 1/4 46 3 50
3 1/2" 12 50 3 1/2 65
Note: Dimensions are in inches, weights are in pounds.

Typical Applications: Features:

• Internal combustion engine
 intakes and exhausts

• Blower intakes and
 discharges

• Vacuum pump discharges

• All Welded construction of
 aluminized steel

• Easily installed in any position

• Long service life
Sample Specification:
The silencer shall be a Maxim Model MUL and shall be of aluminized steel construction, and suitable for mounting in any position. The silencer shall be complete with the following accessories:
MUL

Designed for smaller engine applications,
the MUL is available in pipe connection sizes 1” to 3 1/2”. offering semi-critical grade silencing
comparable to a model M31, an MUL is
suitable for residential areas where background
noise is present but not objectionable and engine
exhaust noise is desired to match the ambient
noise levels.
