MT21 Model

MAXIM SILENCER APPLICATIONS

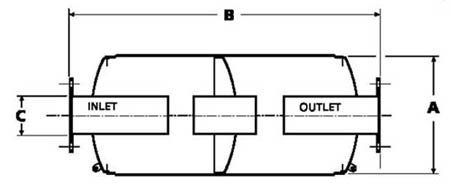

Size A B C Est. Wt.
4" 14 34 4 75
5" 16 39 5 105
6" 18 45 6 140
8" 22 56 8 260
10" 26 59 10 370
12" 30 69 12 560
14" 36 77 14 730
16" 40 87 16 1070
18" 45 100 18 1400
20" 50 108 20 1755
22" 54 116 22 2165
24" 60 128 24 2590
26" 64 136 26 2890
28" 68 151 28 3765
30" 72 162 30 4380

Note: Dimensions are in inches, weights are in pounds.

Typical Applications: Features: Optional Accessories:
• Internal combustion engine
intakes & exhausts
• Blower intakes & discharges
• Vacuum pump discharges
• Advanced acoustical design
• All welded construction &
long service life
• Easily installed in any position
• Prime coated exterior finish
• Explosion relief covers
flexible connectors
• Companion flanges
• Cleanouts
• Various support arrangements
• Special paints
Sample Specification:
The silencer shall be a Maxim Model MT21 and shall be heavy wall, all welded construction, protected by a single coat of shop primer, and suitable for mounting in any position. The exhaust passage shall be straight through and no packing shall be used. The silencer shall be complete with the following accessories:

MT41 – Straight Through, Low Pressure
Drop Design – Expected Attenuation is 19
to 22 dBA

Use an MT41 for better than average silencing
in areas where ambient noise is relatively low
and back pressure requirements call for a low
pressure drop silencer.

MT31 – Straight Through, Low Pressure
Drop Design – Expected Attenuation is 16
to 19 dBA

Use an MT31 for average silencing in areas
where some background noise is always present
and effective but not complete silencing is
needed and requirements call for a low pressure
drop silencer.

MT21 – Straight Through, Low Pressure
Drop Design – Expected Attenuation is 13
to 16 dBA

Use an MT21 for silencing in areas where
background noise is relatively high and silencing
is needed and requirements call for a low
pressure drop silencer.
