M41 Model

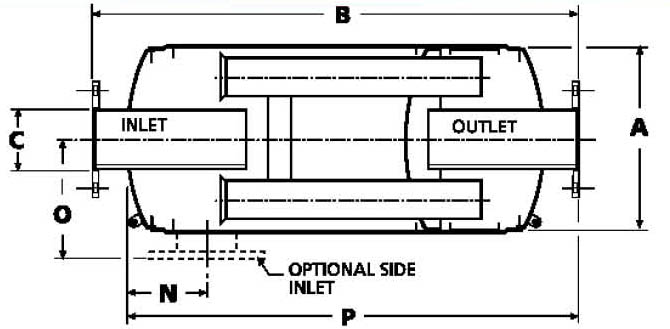

MAXIM SILENCER APPLICATIONS

Size A B C N O P Est. Wt.
Min. Max.
4" 16 54 4 6 25 11 51 120
5" 18 64 5 6 1/2 31 12 61 1/4 170
6" 22 72 6 8 35 14 69 1/4 255
8" 26 85 8 9 1/2 41 1/2 16 82 1/2 390
10" 30 103 10 11 50 18 1/2 100 670
12" 36 118 12 13 58 21 1/2 115 1010
14" 40 117 14 16 56 23 1/2 114 1300
16" 45 134 16 18 65 26 131 1830
18" 50 152 18 20 74 29 149 2350
20" 54 175 20 21 84 31 172 2870
22" 60 185 22 23 92 34 182 3470
24" 64 208 24 25 105 36 205 1/4 4450
26" 68 228 26 26 115 38 225 1/4 5500
28" 72 253 28 28 128 40 250 1/2 6240
30" 78 262 30 30 133 43 259 1/2 7150
Note: Dimensions are in inches, weights are in pounds.

Typical Applications: Features: Optional Accessories:

• Internal combustion engine
 intakes and exhausts

• Blower intakes and
 discharges

• Vacuum pump discharges

• Advanced acoustical design

• Heavy duty, all welded
 construction and long
 service life

• Easily installed in any
 position

• Prime coated exterior finish

• Backfire relief covers

• Flexible connectors

• Companion flanges

• Cleanout openings

• Side inlets

• Horizontal or vertical
 support arrangements

• Special painting

Sample Specification:
The silencer shall be a MAXIM Model M41 for excellent noise control in sensitive applications. The construction shall be heavy wall, all welded, carbon steel construction and protected by a single coat of shop primer. The design of the silencer shall be suitable for mounting in any position and shall be complete with the following available options:

Use a model M51 for the highest degree of “critical”
grade silencing for areas requiring “hospital quiet”
noise reductions. The M51 is presently the top-of
the-line silencer without resorting to multiple
silencers in series or custom designed silencers.

M41 – Excellent Chamber Type Silencer –
Expected Attenuation is 24 to 28 dBA

Use a model M41 for quiet residential areas where
background noise is relatively low and “critical”
grade silencing is required.

Example: For truly quiet residential areas where
ambient noise levels are very low and the sounds
of birds singing and the soft hum of air conditioning
 units may be the noticeable noise features.

Use a model M31 in residential areas where
background noise is present but not objectionable.
In these areas, installation of an M31 on an engine
exhaust is intended to bring the noise level down to
match the ambient noise levels.

Example: In a quieter residential areas off the
main traffic areas and away from constant noise
sources.

Use a model M21 in residential and light industrial
areas where background noise is relatively high
and constant and the need for higher degrees of
silencing is minimal.

Example: In residential neighborhoods having high
traffic or light industry with relatively constant
background noise. Residents in these areas are
typically accustomed to the noise or make some
efforts to shield themselves from the ever present
background noise . Use of an M21 can keep engine
exhaust noise within existing noise levels.
