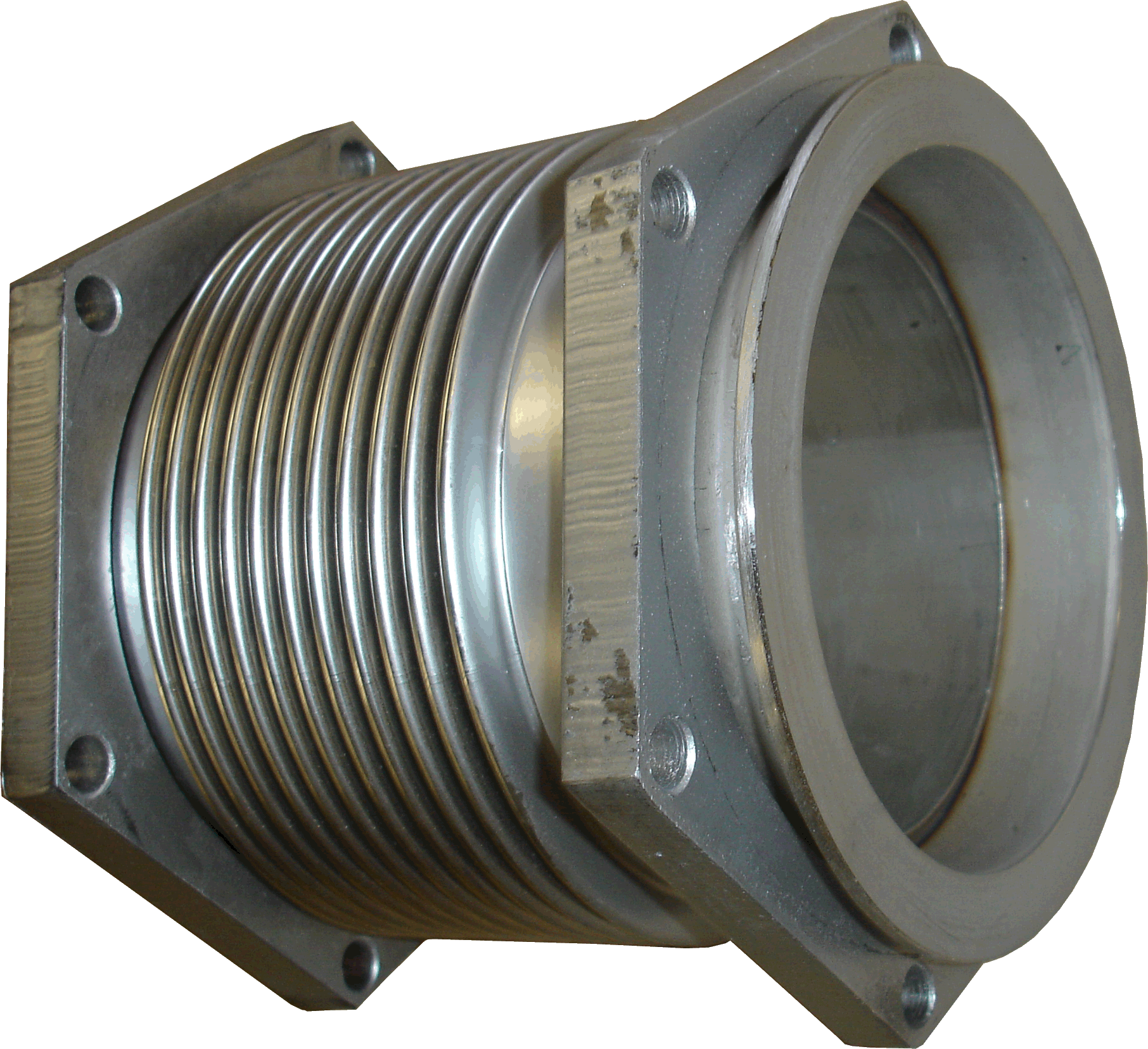

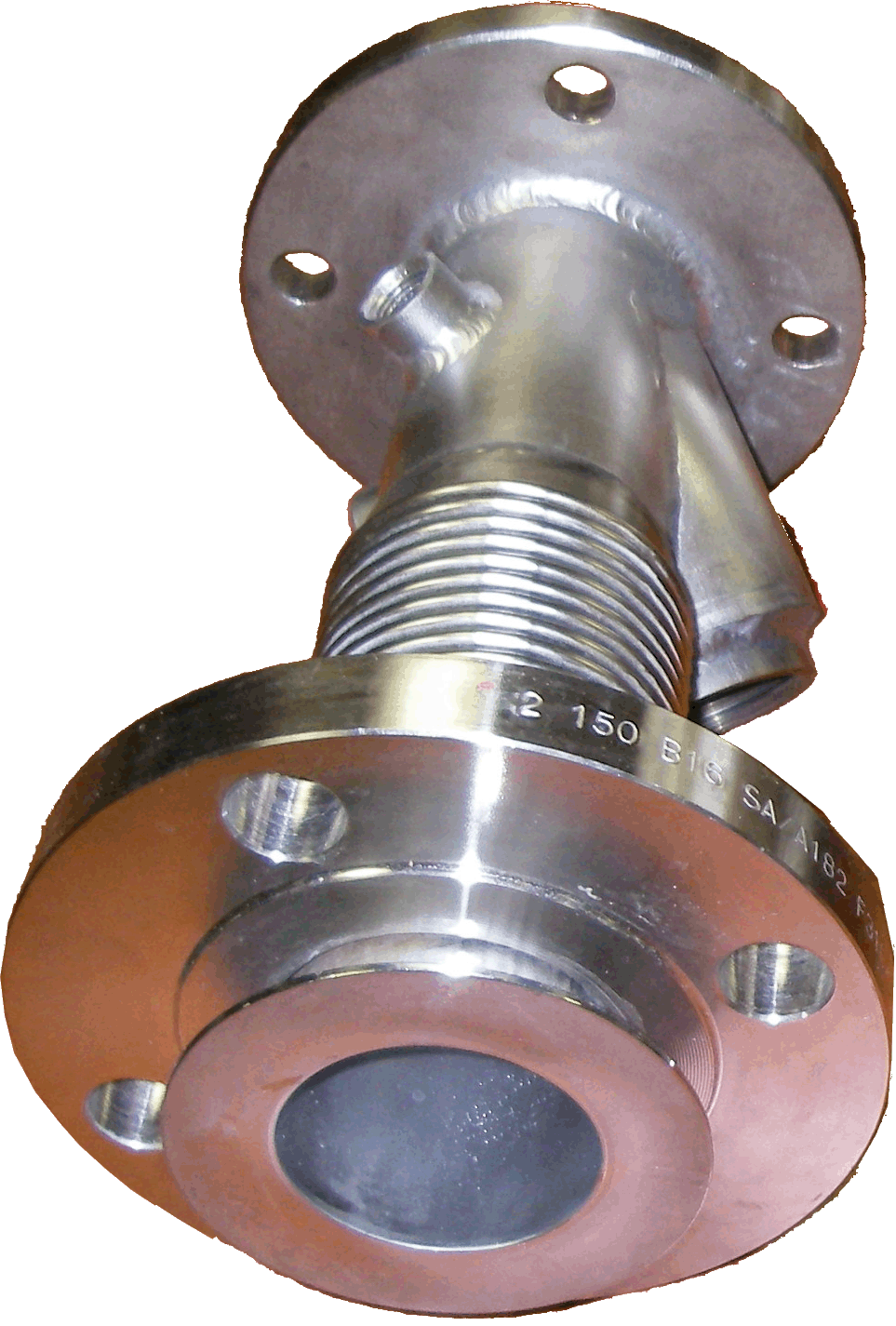

Flexible Exhaust, Bellows, Mufflers, Silencers and Thermal Insulation Blankets




We offer a variety of standard wrinklebelly, bellows, flex.
single ply/ multi ply, linered, interlocking liner, sheathed, braided as well as completely custom designs.
If you do not see what you are needing, please email me the dimensions and requirements and I will reply with a quote.






please scroll down to view some of the standard models


If you already know what you need, please click our handy Quick Order Form
or if you need more information on a part number, please click our Quick Inquiry Form
(Both will generate an e-mail)






Also available in stainless steel ( Call or e-mail for pricing).
See the diagram above and chart below for the WW product measurements and pricing.

Product
ID

Hose
ID

A

B

C

D

Weight

Price

WW-1

1.0"

6.000"

.133"

3.000"

1.315"

1.50#

$35.00

WW-125

1.25"

6.000"

.140"

3.000"

1.660"

1.75#

$40.00

WW-150

1.5"

6.000"

.145"

3.000"

1.900"

2.00#

$44.00

WW-2

2.0"

6.000"

.154"

3.000"

2.375"

2.75#

$48.00

WW-250

2.5"

6.000"

.203"

3.000"

2.875"

4.25#

$60.00

WW-3

3.0"

6.000"

.216"

3.000"

3.500"

5.00#

$75.00

WW-4

4.0"

6.000"

.237"

3.000"

4.500"

6.50#

$98.00

WW-5

5.0"

6.000"

.258

3.000"

5.563"

9.50#

$110.00

WW-6

6.0

6.000"

280"

3.000"

6.625"

14.00#

$123.00

WW-8

8.0"

6.000"

.322"

3.000"

8.625"

20.50#

$160.00

WW-10

10.0"

6.000"

.365"

3.000"

10.750"

27.50#

$232.00

WW-12

12.0"

6.000"

.375"

3.000"

12.750

35.00#

$313.00


This is a standard, carbon steel exhaust pipe to fit a particular pipe dimension.

Also available in stainless steel (Call or e-mail for pricing).
See the diagram above and chart below for the FF product measurements and pricing.

Product
ID

Hose
ID

A

B

C

D

Weight

Price

FF-1

1.0"

10.625"

0.6875"

12.00"

1.36"

5.00#

$68.00

FF-125

1.25"

10.375"

0.825"

12.00"

1.36"

7.00#

$75.00

FF-150

1.5"

10.25"

0.875"

12.00"

1.95"

7.50#

$85.00

FF-2

2.0"

10.00"

1.000"

12.00"

2.44"

11.50#

$100.00

FF-250

2.5"

9.750"

1.125"

12.00"

2.94"

16.50#

$135.00

FF-3

3.0"

9.625"

1.1875"

12.00"

3.57"

18.25#

$150.00

FF-4

4.0"

9.375"

1.3125"

12.00"

4.57"

29.00#

$225.00

FF-5

5.0"

9.250"

1.4375"

12.00"

5.66"

34.00#

$250.00

FF-6

6.0"

8.875"

1.5625"

12.00"

6.72"

42.50#

$275.00

FF-8

8.0"

8.500"

1.750"

12.00"

8.72"

66.00#

$375.00

FF10

10.0"

8.125"

1.963"

12.00"

10.88"

91.00#

$450.00

FF-12

12.0"

7.625"

2.026"

12.00"

12.88"

136.00#

$550.00

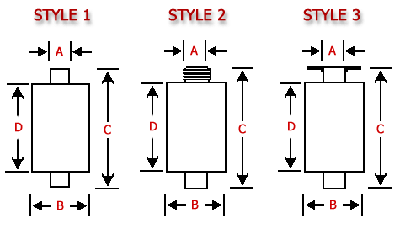

Style 1 = Regular, Style 2 = Beveled, Style 3 = Flanged
Call or E-mail for pricing on flanged mufflers!

May be mounted in any position. All welded stainless steel construction. Also available in heavy duty carbon steel.

MODEL ID

A

B

C

D

PRICE
(styles 1-2)

AIM-03

3.500"

6.625"

15"

9"

$375.00

AIM-04

4.500"

8.625"

18"

12"

$407.00

AIM-05

5.563"

10.75"

21"

15"

$438.00

AIM-06

6.625"

12.75"

24"

18"

$594.00

AIM-08

8.625"

16.00"

30"

24"

$750.00

AIM-14

4.500"

8.625"

22"

16"

$469.00

AIM-15

5.563"

10.75"

26"

20"

$563.00

AIM-16

6.625"

12.75"

30"

24"

$657.00

AIM-18

8.625"

16.00"

38"

32"

$1000.00

AIM-24

4.500"

8.625"

46"

40"

$969.00

AIM-25

5.563"

10.75"

56"

50"

$1250.00

AIM-26

6.625"

12.75"

66"

60"

$1500.00

AIM-28

8.625"

16.00"

86"

80"

$2250.00


Thermal Insulation Blanket Kits (T.I.B.) are made of high purity, alumina-silica ceramic fiber blanket and a woven fiberglass impregnated with silicone resins. The blanket is firmly stitched with Kevlar thread and reusable. It resists damage, absorbs sound and suitable for operating temperatures to 1000F.

Meets the requirements for incombustibility as specified by U.S. Coast Guard 164.009



STANDARD THERMAL INSULATION BLANKETS

MODEL ID

Exhaust Connector Size

Thickness

Length

PRICE

TIB-03

3.500"

1"

18"

$50.00

TIB-04

4.500"

1"

18"

$60.00

TIB-05

5.563"

1"

18"

$73.00

TIB-06

6.625"

1"

18"

$85.00

TIB-08

8.625"

1"

18"

$117.00

CUSTOM TIBS FOR AIM SERIES SILENCERS

MODEL ID

PRICE

TIB-AIM-03

$100.00

TIB-AIM-04

$130.00

TIB-AIM-05

$190.00

TIB-AIM-06

$230.00

TIB-AIM-08

$360.00

TIB-AIM-14

$150.00

TIB-AIM-15

$230.00

TIB-AIM-16

$280.00

TIB-AIM-18

$440.00

TIB-AIM-24

$220.00

TIB-AIM-25

$440.00

TIB-AIM-26

$580.00

TIB-AIM-28

$930.00


NOTE: When ordering, you must specify inlet/outlet diameter. Flange covers not included.

High Pressure Braided Hose Assemblies are custom manufactured to your specifications. Call or e-mail for pricing.

If you have any questions please contact Mark at 1-251-928-1234 or E-mail him at marine.exhaust@gmail.com or Markyall@comcast.net
